0zone mixing system

Gas-liquid mixing pump is generally vortex type, forming negative pressure in the pump, suction mouth suction gas (or liquid), and through a plurality of impeller stirring can be gas-liquid, liquid-liquid mixing.

Advantages:high mixing efficiency,can do high concentration of ozone in water, easy to operate, more beautiful,Disadvantages: gas-liquid than the prescribed range is harsh, the need for gas-liquid mixing tank, water pressure and other aspects of adjustment and matching, in order to achieve the best effect.

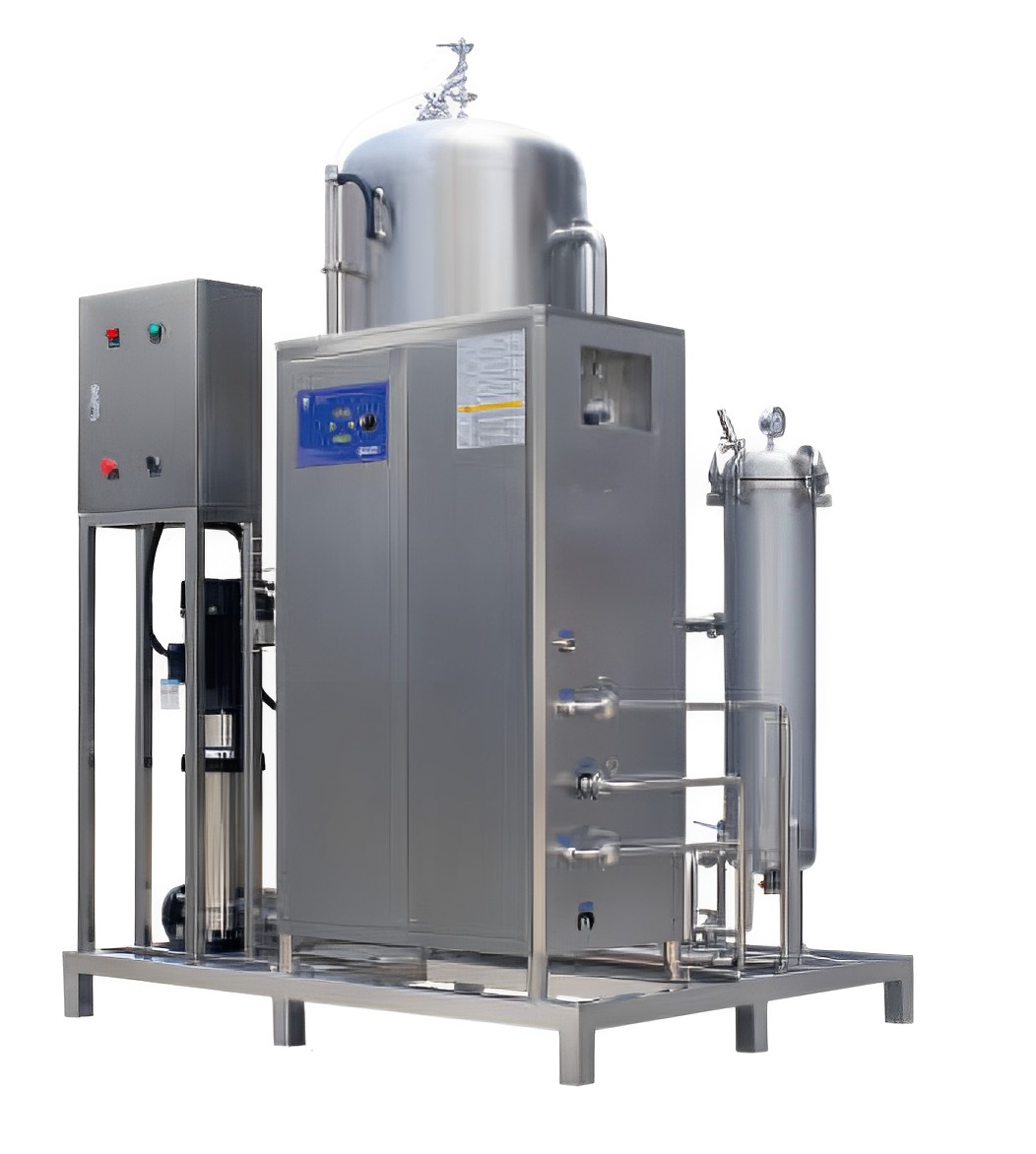

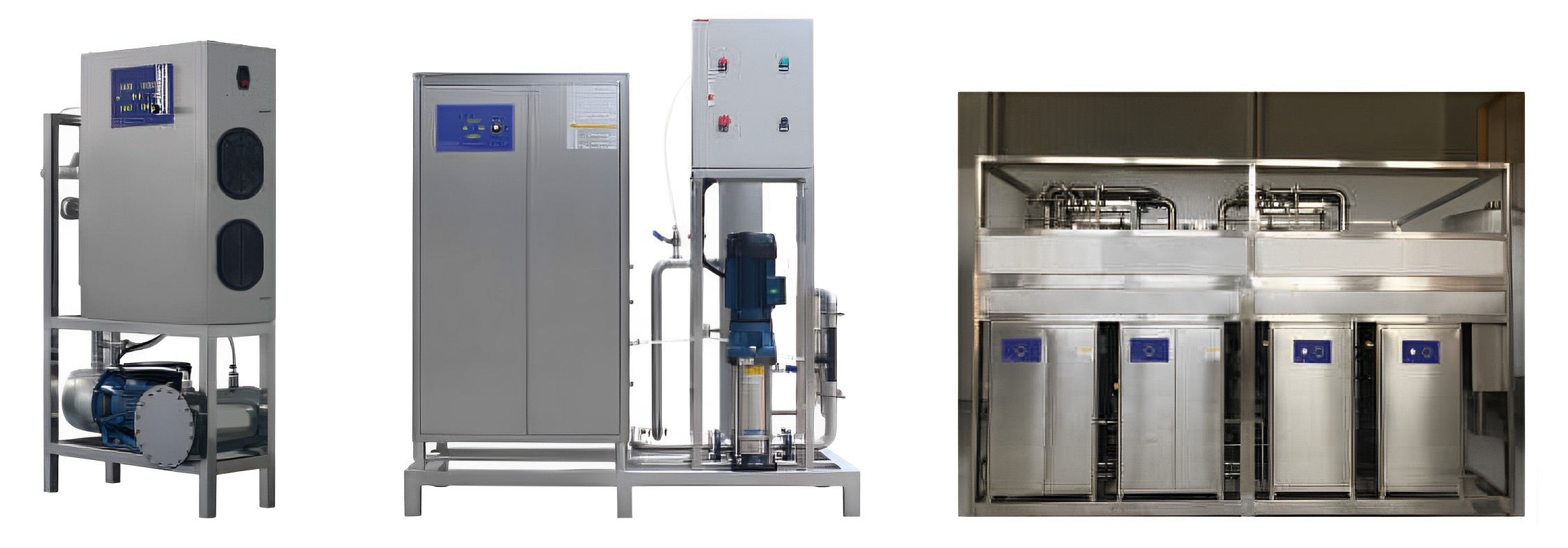

A complete ozone high efficiency mixing system is an air treatment system composed of 1 ozone generator, 1 PSA oxygen generator /adsorption dryer, 1 air compressor, 1 freeze dryer and filter, water intake pump, ozone mixing pump, canning pump flushing pump, ant-return water device, S-type pipeline mixer, U-type anti-return water pipe, ozone mixing pump, ozone contact tank Exhaust gas processor, water ozone concentration detector, intelligent electronic control;

Principle process description

After the compressed air passes through the main pipe to the ordinary filtration, it passes through the ordinary precision filter The flow rate and supply pressure of the compressed air are detected by the flowmeter and pressure transmitter, and the water is deeply dewatered by the adsorption dryer, and then the degreasing water is filtered before entering , Make the dew point of the gas source reach the required 5-10'c, and then pass the dust filter to make the dust particle size less than fum, and become a qualified source of raw gas (to meet the requirements of food-grade hygiene license).

The qualified clean and dry gas source is decompressed and purified by the oxygen generator PSA to purify 90+3% oxygen into the ozone generator. in the mid-frequency high-voltage electric field of the ozone generator, part of the oxygen is converted into ozone. The ozone gas undergoes flow, pressure, and temperature. And after the ozone monitor detects the ozone concentration, it enters the contact oxidation tower (constant ozone concentration control, customized 0.1-10pm ozone concentration mixing system according to customers)
