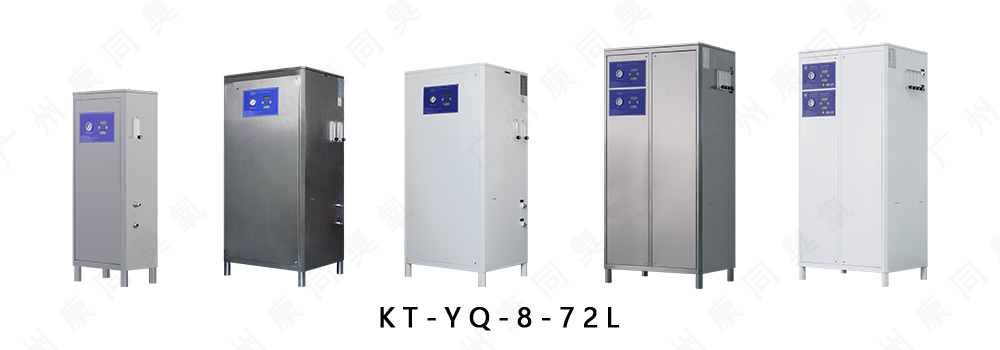

OXYGEN GENERATOR KT-YQ series 8/72L

Product Introduction

Using clean compressed air with dust removal, oil removal, water removal and bacteria removal as raw materials and Zeolite molecular sieve as adsorbent, oxygen was prepared using the principle of Pressure Swing Adsorption.

The main reason is that zeolite molecular sieve adsorbed nitrogen and oxygen at different rates. Zeolite molecular sieve preferentially adsorbed nitrogen, while oxygen was mostly enriched in the non-adsorbed phase. The zeolite molecular sieve itself has the characteristics of increasing the adsorption capacity of nitrogen under pressure and decreasing the adsorption capacity of nitrogen under pressure. Using the characteristics of pressure swing adsorption, oxygen and nitrogen can be separated to get the gas components we need. Because the adsorbent has a certain adsorption capacity, when the adsorption is saturated, it needs to be regenerated, so the adsorption of a single adsorption bed is intermittent, in order to ensure continuous gas supply, the use of double adsorption towers in parallel alternate adsorption, a tower work a tower regeneration, continuous oxygen production.PSA oxygen generation equipment provides you with 90% +5 purity of oxygen to meet the needs of all parties, installation and operation costs are far lower than bottled or liquefied oxygen,

Product Features

(1) Digital display operation interface, easy to operate, ready to use, and continuous oxygen supply.

(2) There are two groups of oxygen production units in each group that automatically cycle work, and the necessary use conditions of the energized equipment are self-checked, which is safer and more reliable,

(3) The circuit board is controlled by a single-chip microcomputer, the switching time is accurate, and the newly added power supply instantaneous power failure judgment function reduces the probability of false shutdown;

(4)Use domestic well-known brands for switching solenoid valves;

(5) Air is the raw material, providing oxygen with a purity of 90% + 5 to meet the needs of all parties, with low power consumption and low oxygen production costs:

(6) Stable performance, all gas circuits are low-pressure systems, safe and reliable operation;

(7)Adjustable oxygen flow, large oxygen supply and low noise;

(8) Optimize over-voltage and under-voltage control and protection, more stable, optional fault protection action, and more accurate protection;

(9) Equipped with over pressure and under pressure protection, which effectively protects the safety of the machine and prolongs its service life,

(10) The box body is made of all stainless steel, which has a longer life. The main body adopts a bolt locked door structure, which is safer and more convenient for maintenance.

Case material includes stool material and stainless steel milky paint meterial.
