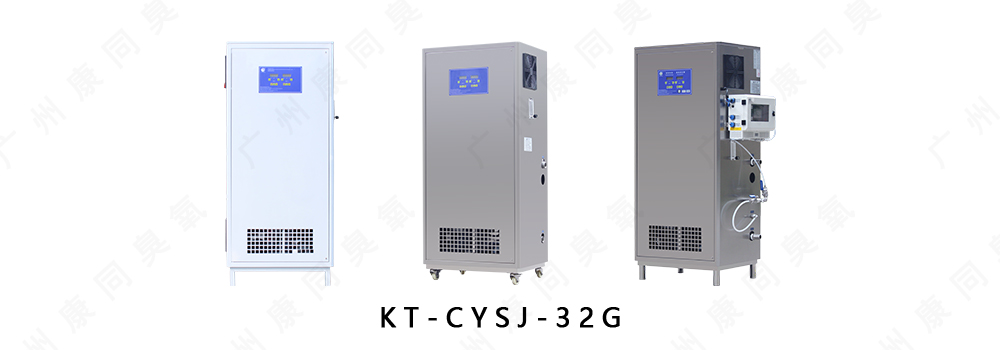

HIGH CONCENTRATION OZONE WATER MACHINE KT-CYsJseries

Product Features

The concentration of circulating ozone water in the high -concentration ozone water machine can reach more than i0ppm. The above is generally at 5ppm, ozone water has super sterilization ability

(1) The timing function can be reserved:

(2) Built-in temperature detection perfect protection and alarm function, all functional parameters are displayed on the scree

(3) Using a micro-nano ozone mixing, device, the diameter of ultra-fine bubbles is only 0.2 microns, which can penetrate into the food structure and wash out excess impurities;

(4) integrated design, including multiple structural units, saves space, reduces investment, and can be used immediately after plugging in;

(5) Its patented product enterprise mixing pump adopts a no bubble pressure tank mixing designs with independent intellectual property rights and patented technologies, which increases the ozone concentration by about 5 times compared with the traditional mixing, and the ozone concentration of high-concentration ozone water is high.

Product composition

(1) Oxygen production unit

Air supply part (compressor, cooler, filter). switch board.display board

(2) Ozone unit

The care components of the ozone unit and peripheral supporting equipment (drive power module, control transformer discharge tube, jet, water pump, etc.) directly affect the operating efficiency and reliability of the equipment.

(3) High concentration ozone water mixing unit

The core components and peripheral supporting equipment (gas-liquid mixing pump,control mixing tank, check valve pressure regulating valve, pressure gauge.etc.)of the high-concentration ozone water mixing unit directly affect the operating efficiency and reliability of the equipment

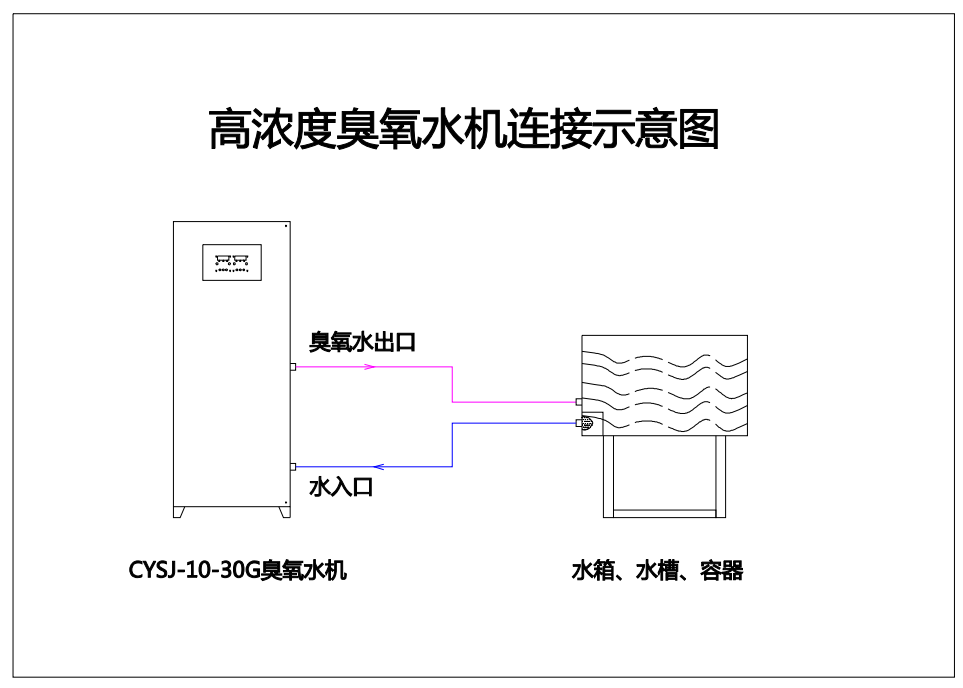

The machine is placed upright on a stable ground or stand,and there is space around it, which is convenient for future maintenance and repair, For detailed connection of pipes,please refer to the connection diagram on the manual.

Applicable scene

(1) Food preservation and storage in hotels.schools,factories, restaurants, etc. deodorization and odor removal aquatic products,degradation of pesticides in fruits and vegetables,and disinfection of tableware

(2) Disinfection of containers in hospitals, food factories cosmetic factories.etc.

(3)Spraying and disinfection in golf stadiums,playgrounds and other places
