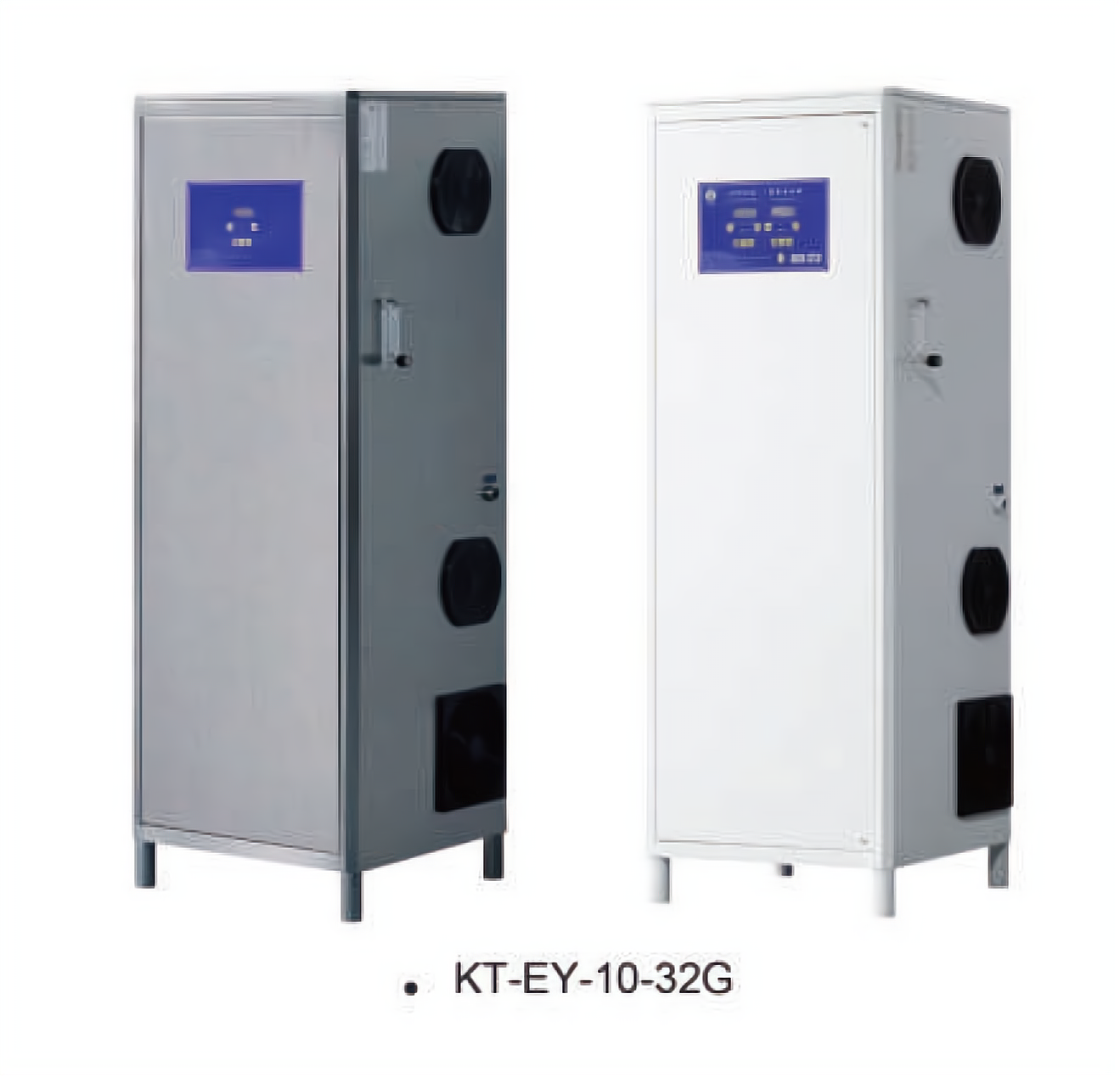

OXYGEN TYPE OZONE MACHINE EY10/32G

Product Introduction

(1) The core components of the ozone generator. The core technology and components of the ozone system (circuit board, transformer, discharge tube) directly affect the operating efficiency and reliability of the equipment;

(2) There are two sets of oxygen concentrator generator units in automatic cycle work

(3) This series of products use imported zeolite molecular sieve as adsorbent, and use pressure swing adsorption (PSA)to separate the oxygen and nitrogen in the air , Separate and filter out harmful substances in the air to obtain high-concentration oxygen that meets medical oxygen standards, PSA oxygen production Provide you with oxygen with a purity of 90%*5 to meet the needs of all parties, and the installation and operation costs are much lower than bottled or liquefied oxygen;

(4) Using air as raw material,without any auxiliary,low power consumption,low cost of oxygen production;

(5) Stable performance,the entire gas circuit is low pressure system,safe and reliable operation.

Product composition

Air source treatment part (air compressor, gas cooling treatment, precision filter), oxygen unit(oxygen cylinder, oxygen storage cylinder, switching plate),ozone unit (strong ozone generation tube,digital display control panel,high voltage transformer, motherboard, safety tube), stainless steel shell, Taiwan 150 cooling fan, gas flowmeter, etc,KT-32Gisair-cooled,and above40Giswater-cooled

Product Features

(1) Air as an air source, including air source treatment part, with compressor, air source cooling treatment, filer, oxygen type ozone integrated design, small size, simple installation, convenient use, more cost-effective, plug and play,

(2) EY-10/32 air-cooled type, EY-40.200 water-cooled type, the amount of ozone generation is adjustable without pole;

(3) For high temperature, high humidity and high salinity environment, adopt stainless steel baking process, moisture-proof and rust-proof, beautiful and practical

(4) Standard 4- 20mA analog signal inlet,the amount of ozone generated in the equipment can be automatically and accurately controlled by various external detectors. This technology ls the first to be adopted in the ozone industry and the world's leading(EY-40V200G model);

(5) Internal design electrical waterway independent design, the use of secondary waterproof technology, national standard higher than the industry standard installation;
