High efficiency ozone generator

Product Introduction

The core components of the ozone generator. the core technology and components of the azone system (circuit boards.transformers, discharge tubes) direclly affect the operating efficlency and reliability of the equipment.

Guangzhou Kangtong KT-CY series ozone generation system adopts a number of micro-gap dielectric barrier discharge design with independent intellectual property patent technology, which not only greatly improves the operaling efhclency, but also increases the safety and reliabilily of the continuous operation of the system; Guangzhou Kangtong KT independent research and developmen of high-performance circuit modules, with the characteristids of stability, high efficieney, energy saving, single-chip program control,touch screen PLC can be installed to match and meet the complex use of the owmer, can realize remote viewing and control of the working status of the machine, and can be expanded A variety of I0 and communicatian interfaces (need to be customized)compared with the general ozone generator, the performance, function and ease of use have been greatly improved. The modular design of the whole machine greally facilitales the installation, overhaul and maintenance of the equipment.

Productcomposition

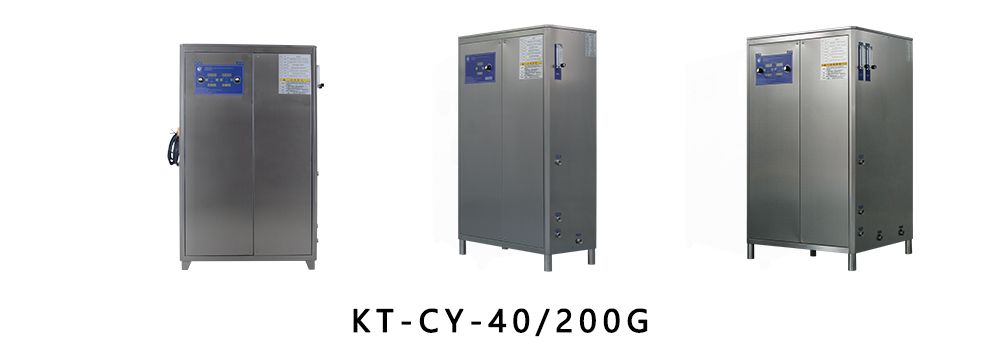

Generator unit,stainless steel casing, ammeteTaiwan i50 fan, gas flow meter, ozone adjustment knobeic., waler-cooled type above KT-CY-40G

Product Features

Multi-fault detection monitoring points (some models do not have all functions), power supply temperature detection, high pressure package temperature detection, cooling water temperature detection, PSA system air pressure detection, ozone generation pipe return water detection, etc. Afer the system delects a failure, the equipment stops Run, the corresponding fault code is displayed on the control panel, and with the code check table on the night, the point of the problem is intuitive and clear.

(1)The main components of the cireuit are infineon products (1GBT IGBT modules)

(2)The amount of 0z0ne 0enareted is lnt nitely adustable

(3) Standard 4-20mA analog signal access port, the ozone generation of the equipment can be automatically and accurately controlled by various external deteclcrs. This technology is the first to be adopted by the ozone industry and is the world's leading;

(4) Self-checking, of necessary operating conditions for energized equipment, safer and more reliable

(5)optimized over-voltage and under-voltage  control and protection,more stable

(6)The fault protectlon action is optional the protection is more accurate

(7) The newly added power supply instantaneous power failure judgment function reduces the probability of false shutdown;

(8)The indusiry's original cooling water temperature automatic control systen,no manual intervention is required for use in alpine areas, which is more convenient and safe (optional)

(9) Equipped with overpressure and underpressure protection, which effectively proiects the safety of the machine and prolongs its service life;

(10) The box body is made of all stalnless steel, which has a longer life. The main body adopts a bolt-locked door structure,which is safer and more convenient for maintenance.
